24 May 2023

QPT’s modules enable GaN to operate at up to 20MHz without overheating or RF issues

Founded in 2020, Quantum Power Transformation (QPT) of Cambridge, UK claims to be the first company to create the technologies needed to enable GaN to operate at well over the existing limitations of 100kHz right up to 20MHz in high-power, high-voltage applications that use hard switching such as motor drive systems for HVAC, robotics etc. The technology opens up this important section of the GaN market that no-one else currently has solutions to address, the firm adds.

Figure 1: QPT’s founder & CEO Rob Gwynne with a qGaN module. Figure 1: QPT’s founder & CEO Rob Gwynne with a qGaN module.

In high-voltage, high-power applications there is a practical limit of 100kHz for GaN beyond which the issues of overheating and RF interference become too great. The existing solution is to throttle GaN back to under 100kHz, which means that the performance is similar to silicon carbide and there are no benefits to using GaN as it is not running at high switching speeds or frequencies where it actually delivers power savings.

“Power engineers are focused on being an expert in one field and have developed skills and design approaches that work at 10–100kHz switching, which is where silicon and SiC transistors operate,” notes founder & CEO Rob Gwynne. “I was able to look at the problem as an RF engineer and create a solution that enables the GaN transistors to be run at their full potential of up 20MHz with nanosecond switching to deliver better operational precision without RF interference issues or overheating and thus, for the first time, deliver their promised efficiencies,” he adds.

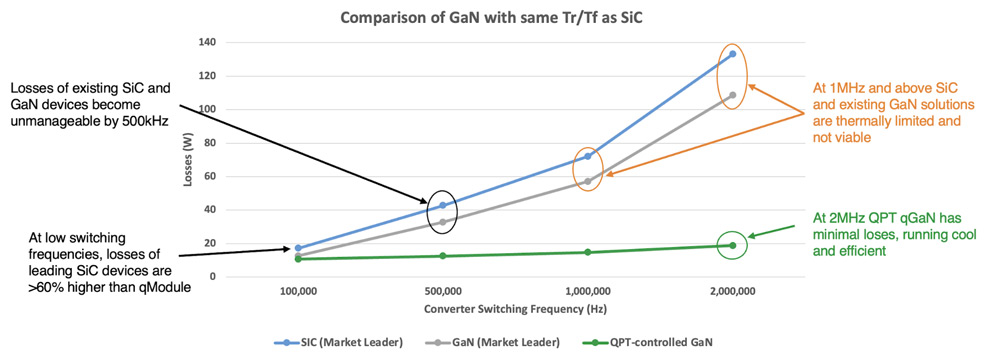

Figure 2: Comparison of SiC, GaN and QPT-controlled GaN.

Figure 2: Comparison of SiC, GaN and QPT-controlled GaN.

QPT has integrated its technology into two modules so that it can be easily implemented by customers with minimal effort and changes to existing designs. The qGaN module contains a 650V GaN transistor with the company’s qDrive that is claimed to be the world’s fastest, most accurate, highest-resolution, low-jitter isolated GaN transistor gate drive. The second module is qSensor, which combines the firm’s ZEST and qSense technologies, providing the sensing and control that enables GaN to be driven at super-high frequencies for the first time.

In addition, QPT has developed its WisperGaN construction system, which includes a reference design for how the modules and the ancillary electronics can be assembled together in a Faraday cage so that there are no heating or RF issues. The resulting solution unlocks the ability of GaN to now operate at ultra-high frequencies and provides up to 80% reduction in power usage compared with existing solutions that have to operate at much lower frequencies, it is reckoned.

The first qGaN module (Q650V15A-M01) will handle 15A RMS current driving 380V three phase motors. The roadmap will have qGaN modules to handle various different power loads to suit different application area requirements. Together with the other QPT technology modules, turnkey solutions can be easily assembled according to the reference design, the firm says. The reference design is a drop-in replacement for the power stage of existing variable-frequency drives (VFDs) without the need for any specialist expertise in EMC or thermal cooling.

“The rest of the existing system such as the microprocessor and software stack stay the same. This makes upgrading a genuine plug-and-play solution with the benefits of needing less power, so it effectively pays for itself in weeks,” says Gwynne. “In addition, there are further savings as the new bill of materials (BOM) is less than existing solutions as it does not require external filters,” he adds. “Companies who want to upgrade from their current silicon solutions to be more power efficient can leapfrog over the hassle of developing a SiC solution in-house and simply use our unleashed GaN solution. Combining the VFD power saving of around 80% with the motor usage gives around 10% reduction in overall power usage, which increases in applications where the motor is frequently at low speeds where the current solutions are inefficient.”

QPT estimates that the high-voltage, high-power application markets where its new technology can provide significant power savings has a total addressable market (TAM) of $365bn. A key segment of that is HVAC and especially heat pumps that are being deployed exponentially around the world, so the TAM will continue to increase. “Electric motors account for 45% of global electricity usage, and our technology can make them more efficient and that means less carbon dioxide emissions which helps combat climate changes,” says Gwynne.

Variable frequency drives
The key application area is in control electronics for motor drives, where their high level of efficiency can play a key role in saving energy. Market researchers estimate that 11 billion electric motors are added annually, accounting for 45% of total electrical energy use, so more efficient motor controls could provide significant global energy savings and reductions in CO2 generation.

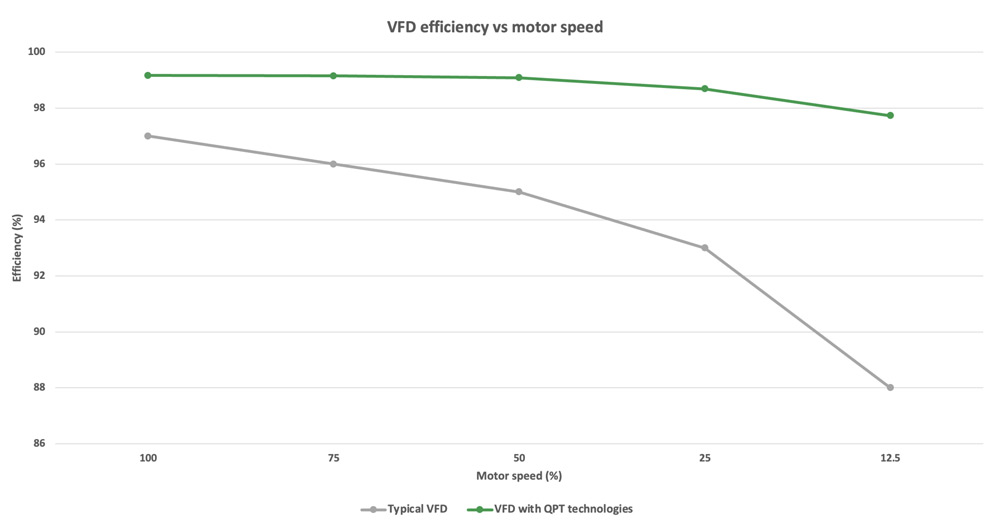

Figure 3: How typical VFD efficiency drops off dramatically and wastes energy as motor speed drops, unlike with QPT technology.

Figure 3: How typical VFD efficiency drops off dramatically and wastes energy as motor speed drops, unlike with QPT technology.

VFDs work by chopping the incoming power to create a frequency that can be changed to adjust the speed of the motor. Energy is lost every time chopping occurs and, currently, manufacturers believe this to be minimal, hence their quoted 97% efficiency figure. However, this figure is at full speed but, in reality, the speed varies and the efficiency drops significantly as the speed drops, which is what happens in a real-world operational cycle and is quietly ignored by manufacturers (similar to car manufacturers only quoting fuel usage at the optimal speed and not mentioning the real-world figures of an urban cycle).

To reduce the energy wasted and therefore be more efficient, the chopping needs to be fast, transitioning from off to on or on to off, as quickly as possible. This is because, during the switching time when the transistor is neither on nor off, it is dissipating huge amounts of power, and this accounts for most of the energy losses.

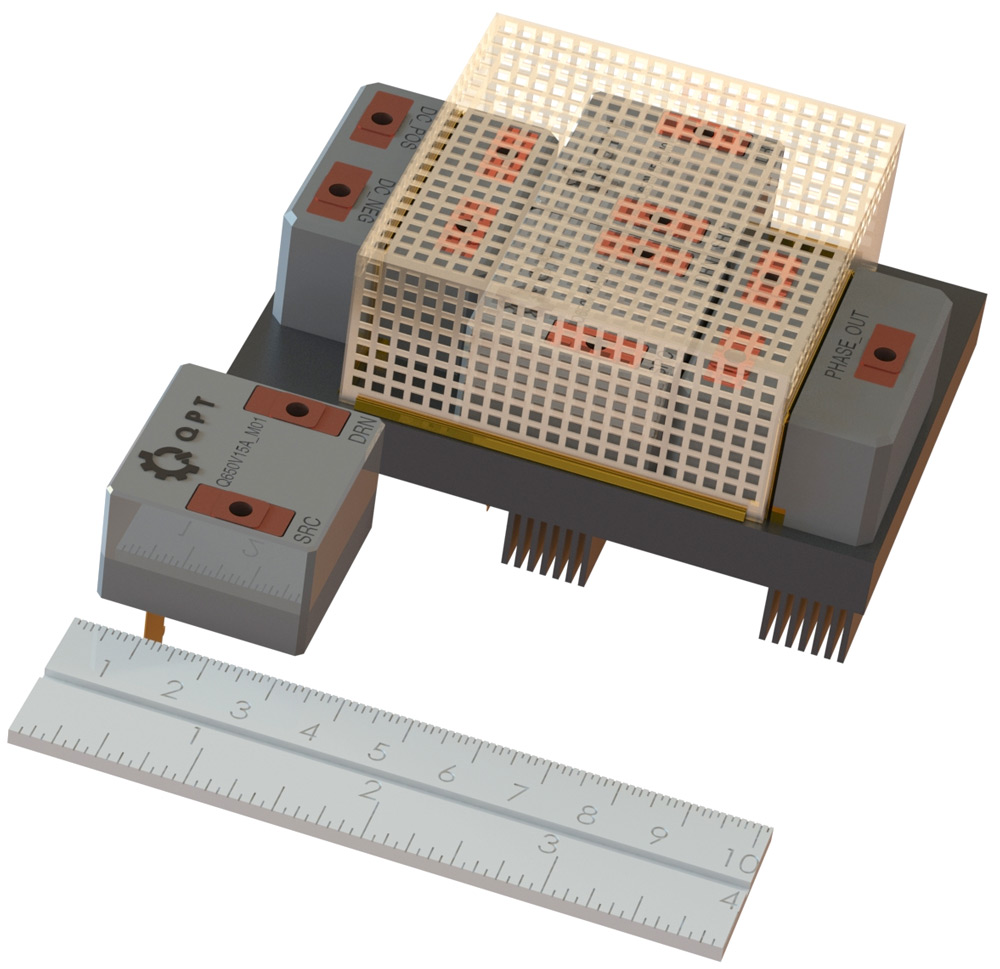

Figure 4: QPT’s reference design for a VFD using its modules with a qGaN module in the foreground.

Figure 4: QPT’s reference design for a VFD using its modules with a qGaN module in the foreground.

GaN transistors with QPT technology are now capable of running at frequencies of up to 20MHz to provide ultrafast switching in 1–2ns, as opposed to 20–50ns for GaN when constrained to under 100kHz to avoid heating and EMC issues. Thus, they are in this high-energy-loss region for very little time and, consequently, they waste very little energy chopping the DC up into variable-frequency AC to drive the motor across the complete range of different speeds.
