Infineon adds devices to CoolGaN BDS 40V G3 family

Infineon Technologies AG of Munich, Germany has expanded its CoolGaN BDS 40V G3 bidirectional switch (BDS) family with two new devices, the IGK048B041S and IGK120B041S.

The new additions reduce PCB footprint by up to 82% and cut component count in half. For engineers designing within the strict spatial constraints of modern smartphones, notebooks and wearables, this is a significant and quantifiable step forward, says Infineon. Targeting compact consumer devices, the new devices give power system designers greater flexibility to optimize efficiency and streamline designs without sacrificing performance.

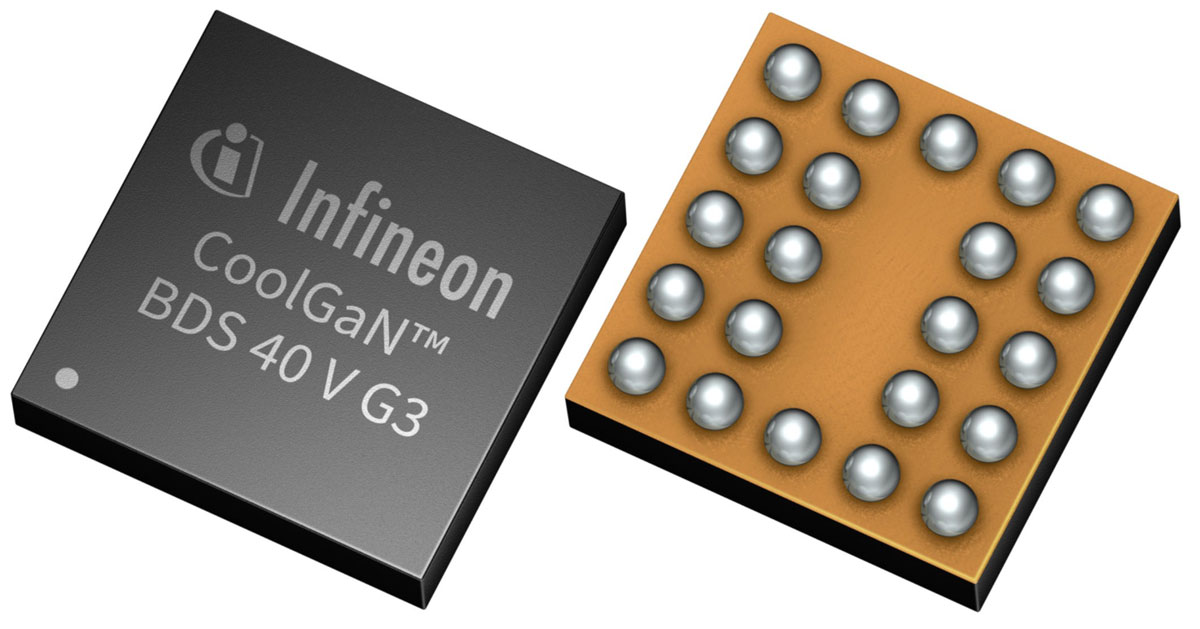

Infineon’s CoolGaN BDS 40V G3 bidirectional switch.

Picture: Infineon’s CoolGaN BDS 40V G3 bidirectional switch.

“As consumer devices continue to shrink while power demands grow, engineers face increasing pressure to deliver more from less. The new CoolGaN BDS devices directly address this challenge,” says Johannes Schoiswohl, head of the GaN business line at Infineon. “Each device integrates the function of two back-to-back silicon MOSFETs into a single component, reducing component count by half and simplifying PCB layouts. Design teams can leverage existing driver layout, avoiding costly redesigns and accelerating time to market. The result is a leaner and more cost-effective power path.”

Like other GaN devices, the BDS is compatible with a 5V gate drive. Offered in WLCSP chip-scale packages measuring 2.1mm x 2.1mm and 1.7mm x 1.2mm, the IGK048B041S and IGK120B041S are engineered for the tight spatial constraints of smartphones, notebooks and wearables. The larger GaN device achieves 4.2mΩ RDD(on) while the smaller device delivers 9mΩ RDD(on).

The CoolGaN BDS devices are said to further distinguish themselves through superior switching and leakage performance. Gate charge is up to about 40% lower than comparable competing devices. Lower gate charge translates directly to faster switching transitions, reduced switching losses, and improved system efficiency in fast-charging applications. Additionally, drain-drain leakage current is reckoned to be more than 85% lower than competing solutions, underscoring the inherent leakage advantages of GaN technology. Together, these characteristics reduce thermal rise, supporting long-term reliability and helping manufacturers to meet increasingly stringent safety requirements.

Unlike silicon MOSFETs, which rely on a body diode that can allow unintended current flow, the CoolGaN BDS devices allow bidirectional voltage and current blocking. This true bidirectional blocking capability is essential for applications such as USB overvoltage protection in smartphones and portable devices, where preventing unwanted reverse current is critical to protecting sensitive downstream components. The devices are equally well suited to load switching and power multiplexing functions in multi-rail power architectures, where precise control of current direction across multiple supply rails is required.

With the addition of these two devices, the CoolGaN BDS 40V G3 family now comprises three devices – the IGK048B041S, IGK120B041S, and the previously released IGK080B041S – addressing the full spectrum of mobile power switching requirements from compact wearables to high-performance notebooks.

The IGK048B041S and IGK120B041S are available now through Infineon's authorized distribution channels.
