In November market research firm Yole Développement will make available ‘Sapphire Substrate Market 2010 – Q4 Update’, fully updating its ‘Sapphire 2010 report’ released at the beginning of the year, in response to the LED market’s subsequent unprecedented growth driving monthly demand for finished sapphire substrates (for manufacturing blue and white gallium nitride-based LEDs) to almost double from 1 million two-inch equivalent (TIE) wafers in December 2009 to nearly 2 million in fourth-quarter 2010.

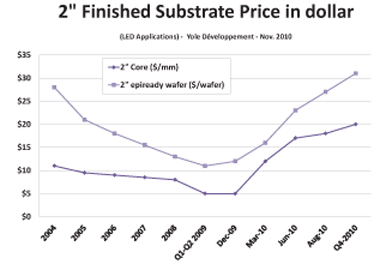

At the beginning of the year, most material makers were still cash strapped following the 2009 financial crisis and the strong price pressure experienced in the previous years, says Yole. As it typically takes 6–12 months to install and ramp up additional capacity, material supply was unable to follow demand. This triggered an acute shortage and a dramatic price rise. From being a commodity, sapphire became a strategic material that gave manufacturers the pricing power they've been lacking in recent years. The average selling price (ASP) for 2” wafers rose to $30 (above Yole’s January forecast), and some customers are now paying cash in advance to avoid idle production lines.
Yole cites several factors that are now reshaping the industry:
In addition, the sapphire crystal shortage is rippling through the raw materials supply chain and creating opportunities for crystal equipment manufacturers, says Yole.
For example, increased wafer demand is creating tensions on the raw materials market. The alumina specific density, form factors (pellets, microbeads or crackles) and high purity that are required for sapphire crystal growth is only available through a handful of companies. Raw material prices are therefore rising and some sapphire manufacturers are paying cash in advance to secure raw material capacity through 2011.
Meanwhile, crystal growth equipment makers are also benefitting from the urgent need for material capacity. More than 10 sapphire crystal growth equipment makers have been identified. Most of them, located in Ukraine and Russia, offer designs similar to the original ‘Omega’ machine developed in the USSR in the 1980s. Most offer turnkey solutions, allowing newcomers to quickly install and ramp up capacity. However, litigation has been reported between equipment makers and sapphire manufacturers, blaming each others for lower-than-expected yields or throughput. Equipment makers also face the risk of seeing their machine reverse-engineered, and orders dry up quickly as customers start manufacturing equipment themselves.
Yole says that the switch to larger-diameter sapphire also adds pressure to the material supply. More than 65% of the metal-organic chemical vapor deposition (MOCVD) reactors shipping in second-half 2010 are configured for 4” or larger wafers. In particular, Rubicon recently signed a $71m supply agreement with a Korean LED maker for 6” wafers. Yole therefore expects that in 2011, for the first time, 2” wafers will represent less than 50% of the total shipped sapphire substrate surface. This will create additional pressure on material supply as, for an equivalent surface, larger wafers are thicker than their 2” counterpart and command lower yields, notes Yole.
