Custom MMIC launches x2 frequency multiplier with high output power and low spur levels

Monolithic microwave integrated circuit (MMIC) developer Custom MMIC of Westford, MA, USA has added to its growing line of standard gallium arsenide (GaAs) amplifier products by launching the CMD214, a 24-36GHz (output) active x2 frequency multiplier in die form.

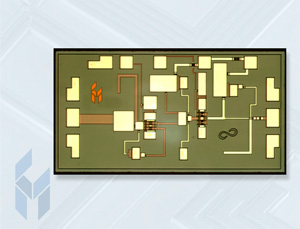

Custom MMIC's CMD214 die. Picture: Custom MMIC's CMD214 die.

The CMD214 accepts input signals in the range of 12-18GHz and provides output to the second harmonic (24-36GHz) at a level of +17dBm. Isolations to the fundamental and third harmonics are greater than 32dBc and 25dBc, respectively. Typical input drive level for the CMD214 is +14dBm, although the multiplier will operate at levels as low as +11dBm. Bias conditions are Vdd=5V @ 40mA, and Vgg1 = -1.8V, and Vgg2 = -0.8V.

All ports are matched to 50 Ohms and no off-chip components are required for operation, aside from bypass capacitors on the gate and drain bias lines. Suitable applications for the CMD214 are point-to-point and point-to-multipoint radios, military and space, and test instrumentation.

Tags: Custom MMIC MMIC GaAs

Visit: www.CustomMMIC.com
