16 May 2014

Cree launches discrete 20A and 50A 650V SiC Schottky diode rectifiers for power supplies

Cree Inc of Durham, NC, USA has added two new discrete 650V silicon carbide (SiC) rectifiers to its Z-Rec Schottky diode portfolio. Fabricated using Cree’s SiC technology, the C5D50065D and CVFD20065A are claimed to deliver ultrafast switching frequencies, higher efficiencies, improved thermal characteristics, enhanced reliability, simplified circuit design, and reduced costs for power electronic systems.

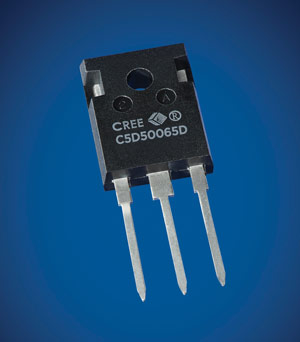

Cree’s new C5D50065D 50A, 650V SiC Z-Rec Schottky diode. Picture: Cree’s new C5D50065D 50A, 650V SiC Z-Rec Schottky diode.

Rated at a blocking voltage of 650V and a continuous forward current of 50A, the C5D50065D Schottky diode is the first member of Cree’s high-power CPW5 diode family to be released in packaged form. Available in a TO-247-3 package, it provides up to 2000A of non-repetitive surge capability at 25°C, combined with the high continuous current-carrying capability of the CPW5 family. The 50A rectifier is suited to demanding applications such as automotive on-board chargers, server power supplies, power conditioning, and high-reliability aerospace and military power systems.

Developed to provide increased switching efficiency through a reduced forward voltage, the CVFD20065A Schottky diode provides 20A of forward current capability with a nominal voltage drop of only 1.35V at 25°C and is the first product to be released as part of Cree’s new family of Low VF Z-Rec Schottky diodes. Cree has also taken additional steps to bolster the surge capability of the CVFD20065A, resulting in a forward surge rating of 1400A at 25°C (10µs pulse) – the highest of all commercially available 20A, 650V SiC Schottky diodes, it is claimed. The 20A rectifier is available in a TO-220-2 package and is rated for a blocking voltage of 650V. With its increased switching efficiency and high surge capability, the new 20A diode was designed with HVAC (heating, ventilation and air conditioning) power supplies and switched-mode power supplies (SMPS) in mind, but is also suitable for motor drives and power inverters operating in the 5-10kW range.

See related items:

Cree launches first 50A SiC rectifiers

Tags: Cree SiC Schottkys

Visit: www.cree.com/Power/Products/Diodes/TO247/C5D50065D

Visit: www.cree.com/Power/Products/Diodes/TO220/CVFD20065A
